BALLISTIC DOOR SYSTEMS

Design drawing of an automated door with a wooden threshold, showing top and 3D side views, labeled with grid references.

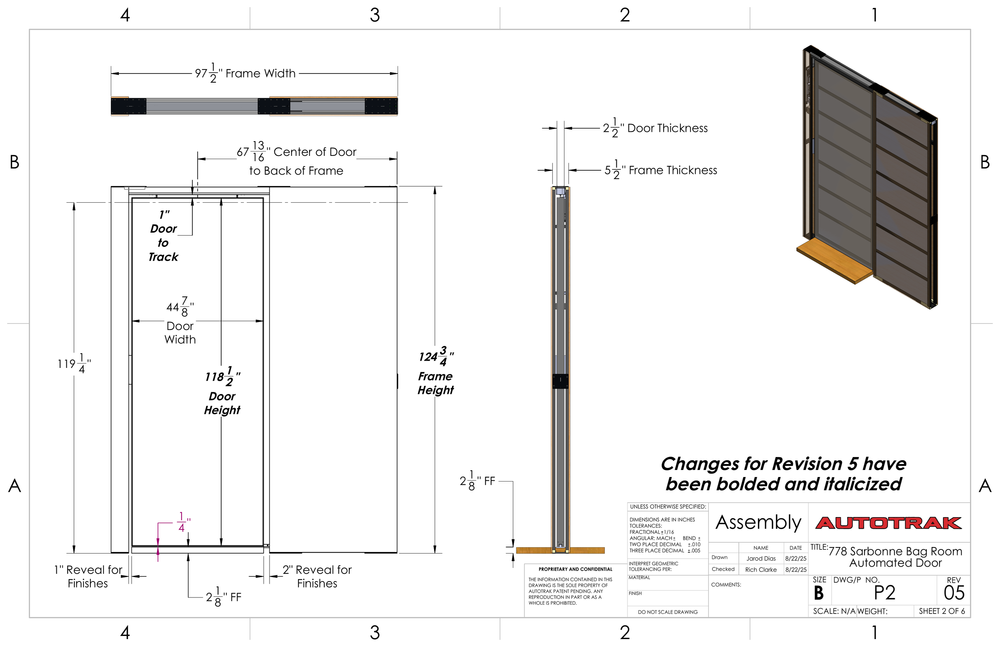

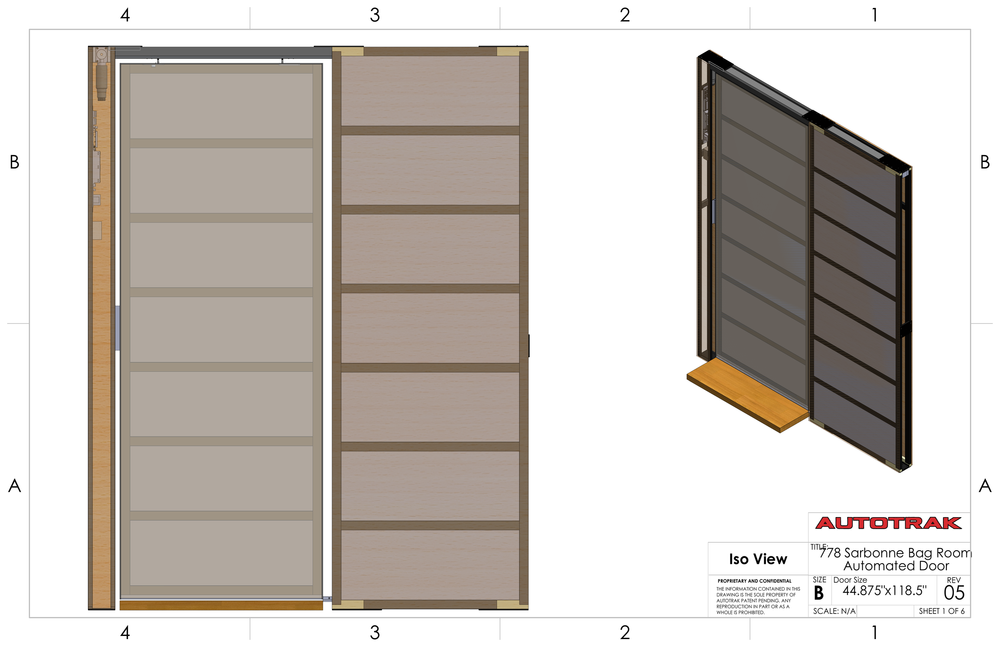

Technical drawing and 3D rendering of an automated door for a Sarbonne Bag Room, showing front, side, and isometric views with detailed measurements and construction notes.

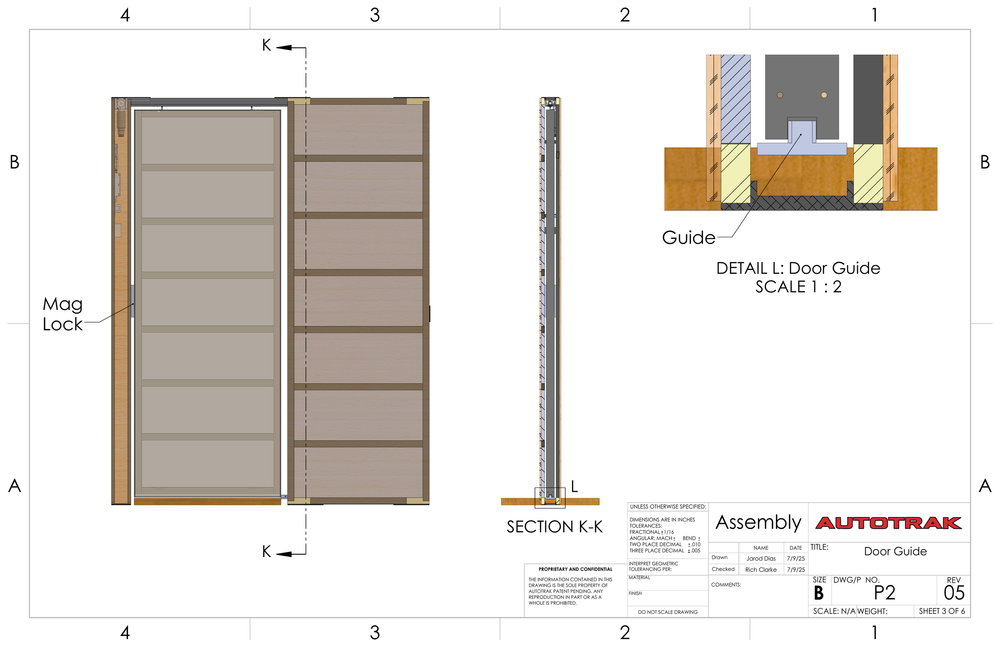

Technical drawing of a door assembly including a front view, a side section, and a detailed latch guide with labels for parts such as the mag lock and door guide, created by Autotrak.

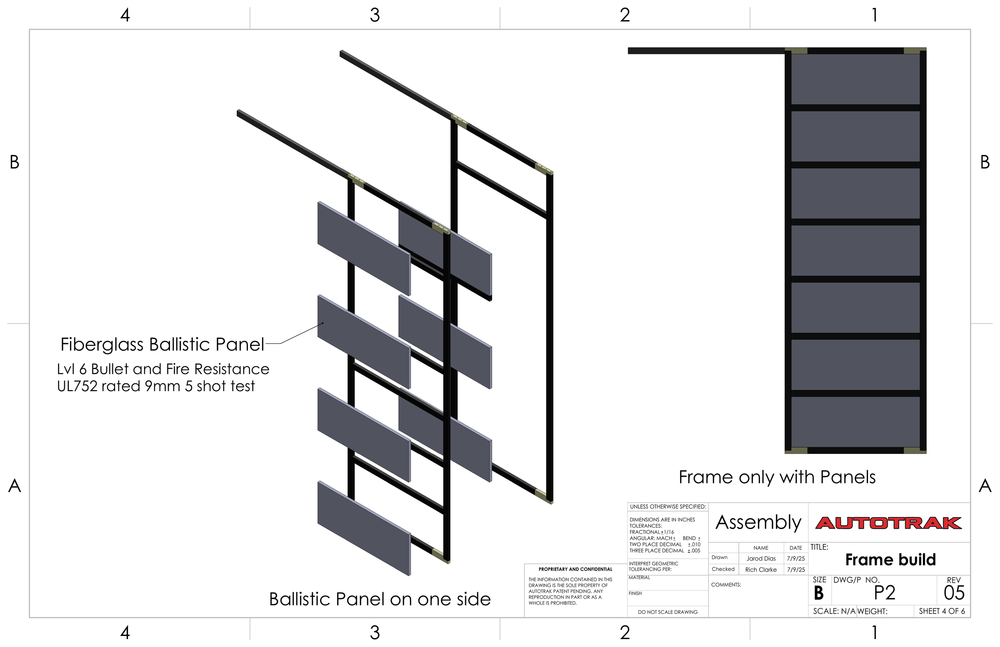

Technical drawing of a frame assembly with fiberglass ballistic panels, black metal frame, and various panels labeled with specifications, including a top and bottom view, detailed labels, and an assembly title block.

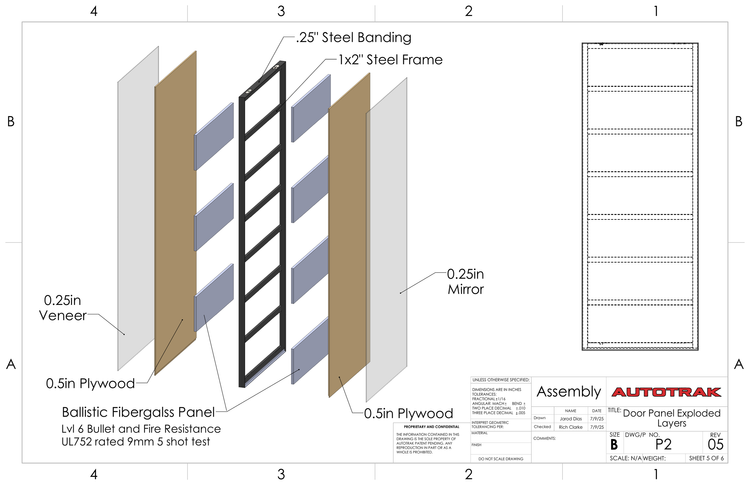

Diagram of a door panel exploded view with parts labeled, including steel banding, steel frame, plywood, veneer, and ballistic fiberglass panel, with a technical drawing on the right side.

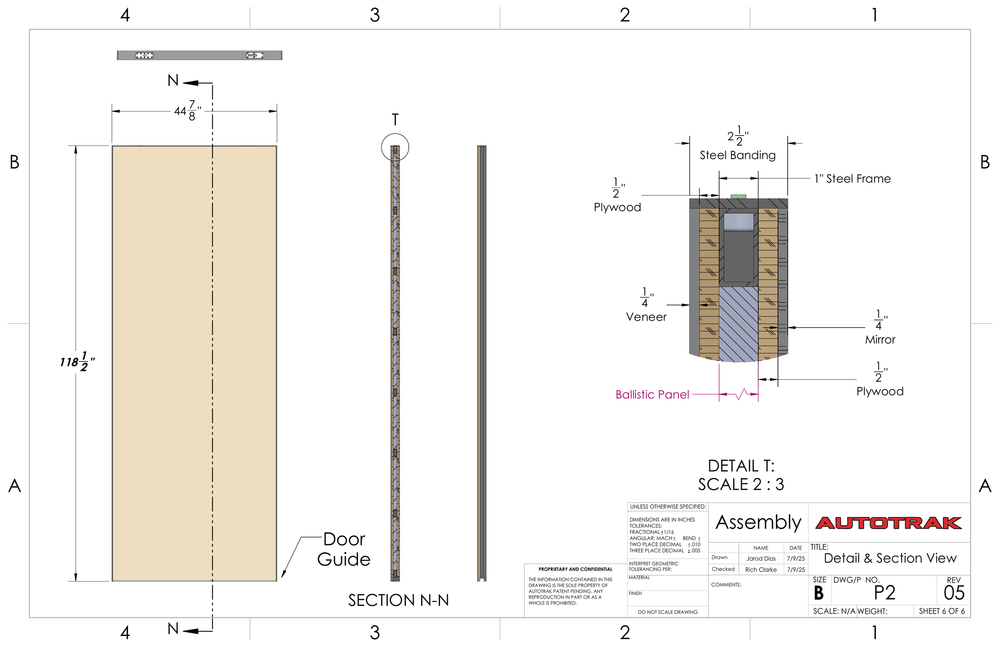

Engineering drawing of a door assembly with detailed section view, including materials labeled such as plywood, veneer, mirror, steel framing, and ballistics panel, with dimensions and annotations.

Classification

LEVEL IIA

LEVEL II

LEVEL IIIA

LEVEL III

LEVEL IV

Protects From

9mm; .40 S&W

9MM; .357 MAGNUM

.357 SIG: .44 MAGNUM

RIFLES

ARMOR PIERCING RIFLE
